Microsoft has a presence in most enterprise development and IT shops, so it’s not a surprise that the Azure AI and Machine Learning platform has a presence in most enterprise development, data analysis, and data science shops. Enterprise AI often has demanding requirements, and the Azure offerings do their best to meet them.
Azure AI and Machine Learning includes 17 cognitive services, a machine learning platform pitched at three different skill levels, cognitive search, bot services, and Azure Databricks, an Apache Spark product optimized for the Azure platform and integrated with other Azure services.
Rather than force companies to run all Azure services on the Azure platform, Microsoft also offers several Docker containers that allow companies to use AI on premises. These support a subset of Azure Cognitive Services, and allow companies to run the cognitive services within their firewall and near on-prem data, which is a sine qua non for companies with tight data security policies and companies subject to restrictive data privacy regulations.
Responsible AI was in the news recently, although not in a good way, when Google fired Timnit Gebru. Earlier in 2020, the Responsible AI news was more positive, as various companies introduced tools to promote more responsible machine learning. Microsoft, for example, added interpretability features to its Azure Machine Learning product, and also released three Responsible AI projects as open source: FairLearn, InterpretML, and SmartNoise.
Fairlearn contains mitigation algorithms as well as a Jupyter widget for model assessment, and has been integrated into a Fairness panel in Azure Machine Learning. InterpretML helps you understand your model’s global behavior, or understand the reasons behind individual predictions, and has been integrated into an Explanation dashboard in Azure Machine Learning. The SmartNoise project, in collaboration with OpenDP, aims to make differential privacy broadly accessible to future deployments by providing several basic building blocks that can be used by people involved with sensitive data. You can bring SmartNoise into a Python notebook by installing and importing the project, and adding a few calls to fuzz your sensitive data.
There is a plethora of frameworks and tools in use in the machine learning, deep learning, and AI world. While Azure AI supports dozens of these directly, there are hundreds more, which Azure handles by providing or allowing integration. Some, such as MLflow, integrate as Python packages; others, such as Pachyderm, integrate as containers, often on Kubernetes (AKS).
Azure Cognitive Services
Microsoft describes Azure Cognitive Services as “a comprehensive family of AI services and cognitive APIs to help you build intelligent apps,” and claims to have the “most comprehensive portfolio of domain-specific AI capabilities on the market,” although its competitors might disagree with that assessment. Azure Cognitive Services are aimed at developers who want to incorporate machine learning into their applications.
The services cover four areas: decision support, language, speech, and vision. Web search used to be included under Cognitive Services, but it has moved to another area, and I won’t cover it.
In general, Azure Cognitive Services don’t need to be trained, at least at the level you’d expect from Azure Machine Learning. Some Azure Cognitive Services do allow customization, but you don’t need to understand machine learning in order to accomplish that. Almost all Azure Cognitive Services have a free trial tier.
The decision support area of Azure Cognitive Services includes an anomaly detector service, a content moderator, a metrics advisor, and a personalizer.
With the Anomaly Detector service, you can embed anomaly detection capabilities into your apps so that users can quickly identify problems as soon as they occur. No experience with machine learning is required. Through an API, Anomaly Detector ingests time series data of all types and selects the best-fitting anomaly detection model for your data to ensure high accuracy. You can customize the service to your business’s risk profile by adjusting one parameter. You can run Anomaly Detector anywhere from the cloud to the intelligent edge.
There are three endpoints to an Anomaly Detector service: Detect the anomaly status of the latest point in the time series; find anomalies for the entire series in batch; and find trend change points for the entire series in batch. Under the covers, there are six algorithms for anomaly detection, used in three ensembles depending on the granularity and seasonality of the data; the service performs the selection automatically. The only parameter a user needs to adjust is the sensitivity.
I tested all three endpoints in the Azure console using sample data against a free Anomaly Detector service that I created. For each test I had to fill in the service name (
iw-anomaly) and subscription key. The most interesting of the three was the trend change points, shown below. The third screenshot below shows various kinds of anomalies that the service can detect.
In addition to console-based service testing, Azure supplies code samples using
The Content Moderator service, designed to help administrate social media, product review sites, and games with user-generated content, performs image moderation, text moderation, video moderation, and optional human review for predictions with low confidence or mitigating context.
The image moderation service scans images for adult or racy content, detects text in images using optical character recognition (OCR), and detects faces.
There are two text moderation APIs, one standard and one for customization. The standard API returns information about:
- Profanity: Term-based matching with built-in list of profane terms in various languages.
- Classification: Machine-assisted classification into three categories, ranging from sexually explicit to potentially offensive in some circumstances. This service can also recommend when human review should be performed.
- Personal data: Email address, SSN, IP address, phone, and mailing address.
- Auto-corrected text: Correction of frequent typos.
- Original text: Uncorrected text with typos.
- Language: An optional parameter that defaults to English.
The custom term list management API allows you to create and manage up to five lists of up to 10K terms each to augment the standard terms lists used by the content moderator text API.
The video moderation service scans videos for adult or racy content and returns time markers for said content. It also returns a flag saying whether it recommends a human review at each detected event.
Microsoft recommends the Content Moderator review tool website for working with the Content Moderator service, to provide a single interface for image, text, and video moderation reviews.
The Metrics Advisor service builds on the Anomaly Detector service to monitor your organization’s growth engines, from sales revenue to manufacturing operations, in near-real time. It also adapts models to your scenario, offers granular analysis with diagnostics, and alerts you to anomalous events.
Personalizer is an AI service that delivers a personalized, relevant experience for every user. It uses reinforcement learning to optimize its model for your goals, and has an “apprentice” mode that only lets Personalizer interact with users after the service reaches a specified level of confidence in matching the performance of your existing solution.
Personalization can be an ethical minefield. Microsoft has guidelines for using Personalizer ethically, which cover the choice of use cases, building reward functions, and choosing features for personalization. As far as I can tell, neither Microsoft nor anyone else actually enforces those guidelines, although there are regulations about privacy (among other areas) that you could easily violate if you chose to ignore the guidelines and implement scenarios that could cause the user harm, such as personalizing offers on loan, financial, and insurance products, where risk factors are based on data the individuals don’t know about, can’t obtain, or can’t dispute.
The quickest way to understand the Personalizer service is probably to run the interactive Personalizer demo website, shown below.
The language area of Azure Cognitive Services includes an immersive reader, a language understanding service, a conversational question and answer layer for your data, text analytics, and a language translator.
One consequence of the 2020 pandemic has been the need to attend school remotely, which doesn’t work well for all students. Immersive Reader lets you embed text reading and comprehension aids—i.e., audio and visual cues—into applications and websites with one line of code. You can help users of any age and reading ability with features like reading aloud, translating languages, and focusing attention through highlighting and other design elements.
Azure is the only major cloud provider offering this type of reading technology. Immersive Reader supports users with varying abilities and differences—including dyslexia, ADHD, autism, and cerebral palsy—as well as emerging readers and non-native speakers.
The Azure Language Understanding service, also call LUIS (the “I” stands for intelligent), allows you to define intents and entities and map them to words and phrases, then use the language model in your own applications. You can use prebuilt domain language models and also build and use customized language models. You can build the model with the authoring APIs, or with the LUIS portal, or both. The process of training LUIS models uses machine teaching, which is simpler than conventional machine learning training, and a LUIS model also improves continuously as the model is used. LUIS supports both text and speech input.
QnA Maker lets you create a conversational question-and-answer layer over your existing data. You can use it to build a knowledge base by extracting questions and answers from your semi-structured content, including FAQs, manuals, and documents. You can answer users’ questions with the best answers from the QnAs in your knowledge base automatically. In addition, your knowledge base gets smarter as it continually learns from user behavior.
In addition to web Q&A, you can create and publish a bot in Teams, Skype, or elsewhere. You can also make your bot more conversational by adding a pre-populated chit-chat dataset at a range of (in)formality levels from professional to enthusiastic.
QnA Maker is often implemented behind a Language Understanding service. QnA Maker itself requires an App Service and a Cognitive Search service.
Text Analytics is an AI service that uncovers insights such as sentiment, entities, relations, and key phrases in unstructured text. You can use it to identify key phrases and entities such as people, places, and organizations, to understand common topics and trends. A related service, Text Analytics for Health (currently in preview), allows you to classify medical terminology using domain-specific, pretrained models. You can gain a deeper understanding of customer opinions with sentiment analysis, and evaluate text in a wide range of languages.
Microsoft offers extensive transparency notes for its Text Analytics services, which ties into Microsoft’s responsible AI principles. It also promises privacy, in that it doesn’t use the training performed on your text to improve Text Analytics models. If you choose to run Text Analytics in containers, you can control where Cognitive Services processes your data.
The alternative to running Text Analytics in containers is making synchronous calls to the service’s REST API, or using the client library SDK. In November 2020 Azure added a new preview Analyze operation for users to analyze larger documents asynchronously, combining multiple Text Analytics features in one call.
Bing Translator (now called Microsoft Translator) once ran a distant second to Google Translate for quality and speed of translation, as well as in numbers of supported language pairs. That’s no longer the case for quality and speed, although as of December 2020 Google Translate supports 109 languages, compared to Microsoft’s “more than 70.” (Both translate Klingon, at least in text and using the API, should you happen to care.)
Azure’s Translator service not only provides stock translations, but also allows you to build custom models for domain-specific terminology, although using customized translation models is a little more expensive than using stock models. Microsoft doesn’t share the custom training performed on your training material or use it to improve Translator quality, nor does it log your API text input during translation, even though it does use consumer feedback from Bing Translate to improve stock Translator quality.
Translator is the same service that powers translations in all of Microsoft’s products, such as Word, PowerPoint, Teams, Edge, Visual Studio, and Bing, not to mention the Microsoft Translator app. In addition to being available as a cloud service, Translator can be downloaded to run locally on Edge devices for some languages.
I created a free-tier Translator service without any problems. I didn’t learn much more from testing it programmatically, however, than I did from exercising Bing Translator on the web or the Microsoft Translator app on Android. Bing Translator and Microsoft Translator also support speech and vision for some languages.
The Speech area of Azure Cognitive Services includes speech recognition, text to speech, speech translation, and speaker recognition.
Speech Studio is a customization portal for Speech. It claims to supply all the tools you need to transcribe spoken audio to text, perform translations, and convert text to lifelike speech.
Speech to Text
Microsoft describes its Speech to Text service as allowing you to quickly and accurately transcribe audio to text in more than 85 languages and variants. The latter include six variants of English, seven variants of Arabic, and two variants each of French, Portuguese, and Spanish. You can also customize speech recognition models to enhance accuracy for domain-specific terminology, and combine transcriptions with language understanding or search services.
Text to Speech
Azure’s Text to Speech service allows you to build apps and services that speak naturally, choosing from more than 200 voices and over 50 languages and variants. Some of the 50 languages and variants don’t have corresponding speech recognition support.
You can differentiate your brand with a customized voice, and access voices with different speaking styles and emotional tones to fit your use case. Standard voices don’t sound as natural as neural voices, but neural voices cost four times as much to use. Azure neural voices compete with Google WaveNet voices.
The Speech Translation service allows you to translate audio from more than 30 languages and customize your translations for your organization’s specific terms. The service essentially combines speech to text for the source language, language translation, and text to speech for the target language.
The Speaker Recognition service, currently in preview, works in two use cases. For identification, it matches the voice of an enrolled speaker from within a group, which is useful in transcribing conversations. For verification, it can either use pass phrases or free-form voice input to verify individuals for secure customer engagements.
This area includes computer vision, custom vision, face detection, form recognition, and video indexing.
The Computer Vision service includes a bunch of capabilities for analyzing still images and video. These include optical character recognition (OCR), digital asset management (DAM), tagging visual features, object detection (with bounding boxes), commercial brand detection, categorizing images with a taxonomy, description generation, face detection, image type detection, domain-specific content detection, color scheme detection, thumbnail generation, area of interest detection (with bounding boxes), and adult content detection.
Spatial analysis analyzes video for events such as people detection (with bounding boxes), people tracking (from frame to frame), and region of interest (for example, person crossing a line or entering a zone). Spatial analysis is in a gated preview that requires an application.
Transfer learning is a quick way to customize an image model. Custom Vision uses transfer learning to create custom image models from just a few tagged images—not the thousands of images you might expect to need. It can also help you with untagged images. As you add more images, the model keeps improving.
The Face service includes face detection that perceives faces and attributes in an image; person identification that matches an individual in your private repository of up to 1 million people; perceived emotion recognition that detects a range of facial expressions like happiness, contempt, neutrality, and fear; and recognition and grouping of similar faces in images.
Form Recognizer applies advanced machine learning to accurately extract text, key/value pairs, and tables from documents. With surprisingly few samples (the examples given used five exemplars for each custom document type), Form Recognizer tailors its understanding to your custom documents, both on-premises and in the cloud. It also has several pre-built models, such as for layouts, invoices, sales receipts, and business cards.
With the Video Indexer service, you can automatically extract metadata—such as spoken words, written text, faces, speakers, celebrities, emotions, topics, brands, and scenes—from video and audio files. Then you can access the data within your application or infrastructure or make it more discoverable.
The Bing Search APIs used to be here, under Cognitive Services. They are now under Bing.
Azure Machine Learning
While Azure Cognitive Services are primarily aimed at software developers, Azure Machine Learning is primarily aimed at data scientists. There’s a lot of overlap, of course: Data scientists may well choose to use Cognitive Services if they already work well for the application at hand or can be customized with transfer learning, and programmers may find that they are comfortable using Jupyter Notebooks to build models for cases where Cognitive Services fall short. Even business analysts without machine learning experience may manage to build models with AutoML or using the Azure Machine Learning drag-and-drop designer.
Microsoft maintains that Azure Machine Learning accelerates the end-to-end machine learning lifecycle. That doesn’t mean that you are required to use Azure Machine Learning for everything—just that you can. You can also integrate third-party products and other Azure services with Azure Machine Learning. The first three screenshots below show Microsoft’s visual introduction to Azure Machine Learning, although the screens are slightly out of date. In particular, the first intro screen lacks the Pipelines tab under Assets, shown in the fourth screen below.
The last time I wrote about Azure Machine Learning, the old drag-and-drop designer had been deprecated, and there was a new emphasis on Python programming and Azure (Jupyter) Notebooks, essentially raising the bar on skills. The designer has now been revamped, and both the designer and AutoML given equal emphasis to Notebooks. Another improvement is the addition of R support and RStudio Server integration.

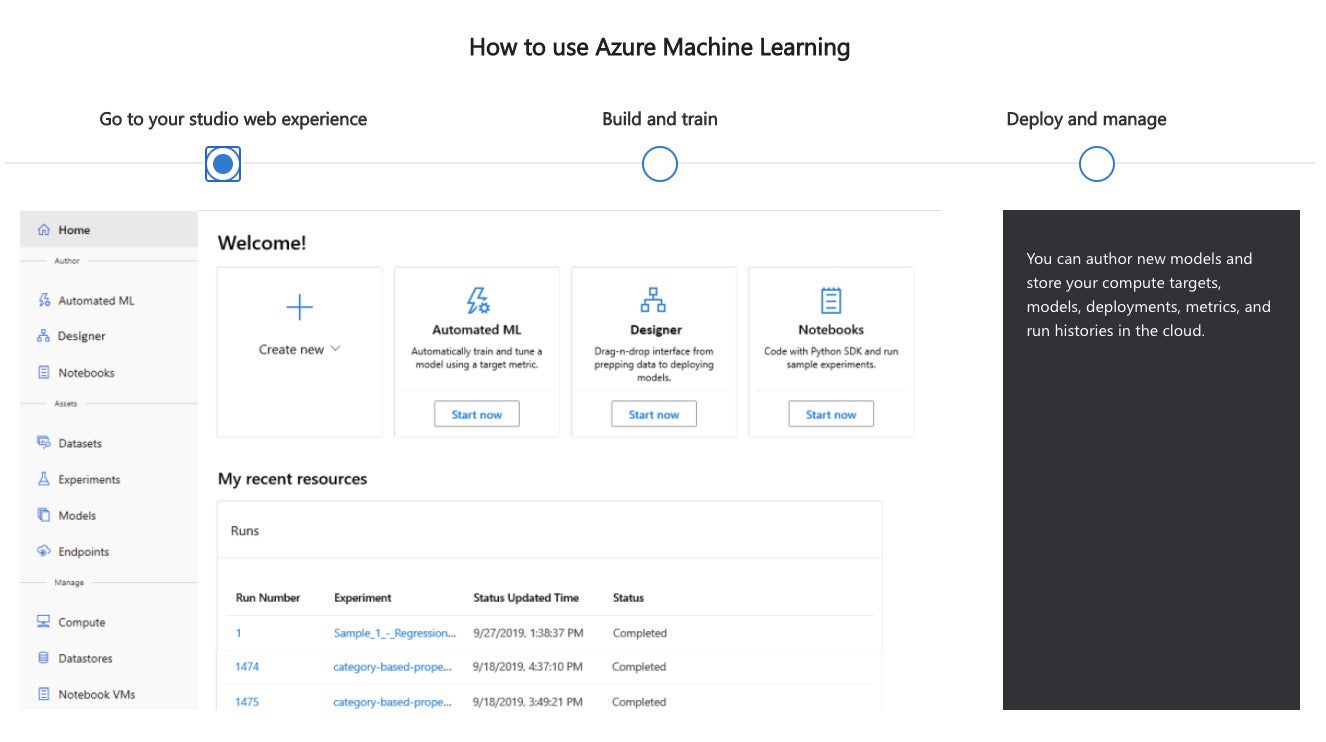

Microsoft’s own high-level summary of Azure ML emphasizes “productivity for all skill levels,” end-to-end MLOps, state-of-the-art responsible ML, and “best-in-class support for open-source frameworks and languages including MLflow, Kubeflow, ONNX, PyTorch, TensorFlow, Python, and R.” As key service capabilities, Microsoft mentions collaborative notebooks, automated machine learning, drag and drop machine learning, data labeling, MLOps, autoscaling compute, RStudio integration, deep integration with other Azure services, reinforcement learning, responsible ML, enterprise-grade security, and cost management.
Rather than create a notebook from scratch for the purposes of this review, I started with a Microsoft sample notebook.
I chose one of the sample notebooks that demonstrate explainable machine learning. This is only one of the new capabilities of Azure Notebooks. Others include forecasting and reinforcement learning.
To actually run a sample notebook, you need to clone it into your own directory and add a compute resource instance.
This notebook creates an additional compute resource to run the model, a remote cluster of up to four nodes. Then it submits a script to the cluster, specifying dependencies of Pandas and Scikit-learn, and waits for the script to complete.
This run took 5 minutes 39 seconds. Much of that time was the five minutes spent waiting for the remote resource to spin up, which was annoying—but that’s the price you pay for creating compute resources on demand and releasing them when they are idle.
Finally, the notebook downloads the results from the remote cluster and lets you analyze them with the explanation dashboard. The What-if tool is comparable to Google’s, but not limited to TensorFlow models. This particular example builds a Scikit-learn model.
Azure Machine Learning notebooks currently have pre-release support for R and RStudio. I was able to create an RStudio environment from the Compute tab (see the first screenshot below) and clone the sample vignettes by following the instructions in the tutorial. I ran into trouble at the “load your workspace” stage, but fixed it by reinstalling the Azure Machine Learning SDK for R from GitHub. Unfortunately, I ran into more bugs at the
create_estimator() call that I couldn’t fix, and gave up. (See the second screenshot below.) Oh, well: It was advertised as pre-release, and it was.
Automated ML in Azure is not as new as it looks. As far as I can tell, it’s a nice user interface around the AutoMLConfig method that has been available in Azure Notebooks since at least early 2019. What is new under the covers? Forecasts, explanations, and featurization (automatic feature engineering).
I’ll note that Azure Automated ML currently only works on tabular or file data sets, just like Google AutoML Tables. DataRobot (see my review) is more flexible, and does AutoML using a mix of training data types, including images. While an Azure AutoML task of type image-instance-segmentation was added to the code in December 2020, I haven’t yet found it in the user interface or tutorials.
For fun, you can compare the Bike share AutoML forecasting tutorial with the notebook version of the same analysis. As a crusty old Python programmer, I prefer the notebook, but you may find the graphical interface easier for new AutoML projects.
The Azure Machine Learning Designer is a no-code/low-code graphical interface for creating pipelines. While it resembles the old Azure Machine Learning Studio interface, it uses the much more robust infrastructure now available in Azure Machine Learning, including clusters of VM-based nodes, which may have GPUs or FGPAs, as compute targets. The Designer’s graphical approach to pipeline creation is similar to KNIME, although KNIME has many more modules.
With Azure Machine Learning datasets, you can keep a single copy of data in your storage referenced by datasets and access data during model training without worrying about connection strings or data paths.
Your machine learning experiments and the runs within each experiment are listed in the Experiments tab.

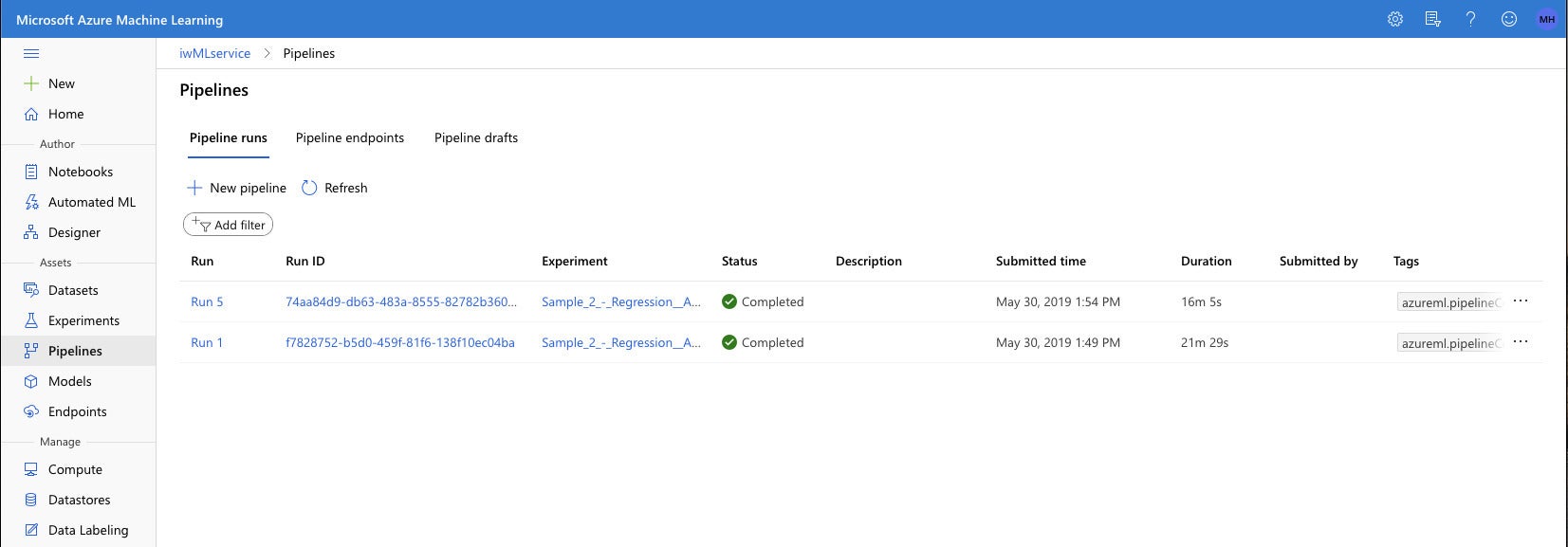

Pipelines show the Designer runs you’ve completed in the Pipeline runs tab, and diagrams you haven’t run in the Pipeline drafts tab. Azure Machine Learning pipelines can be published to get a REST endpoint that can be invoked from an external client. Clicking into a Pipeline brings up the diagram as an experiment run.
Completed models are listed in the Models tab whether or not they have been deployed. You can deploy models to create web service endpoints, listed in the Endpoints tab.
You can manage your compute instances, compute clusters, inference clusters, and attached compute resources in the Compute tab. That’s a good place to check for running instances that you might want to kill before they accrue long-term charges.
Any dataset you register appears in the Datastores tab. The underlying storage may be Azure Blob storage or an Azure file share.
Azure Machine Learning data labeling gives you a central place to create, manage, and monitor labeling projects. Data labeling currently supports image classification, either multi-label or multi-class, and object identification with bounded boxes.
Data labeling tracks progress and maintains the queue of incomplete labeling tasks. This is a manual process with two optional phases of machine learning assistance: clustering and pre-labeling. The latter uses transfer learning, and may be available after only a few hundred images have been manually labeled if your categories are similar to the pre-trained model.
The Open Neural Network Exchange (ONNX) can help optimize the inference of your trained machine learning model. Models from many frameworks, including TensorFlow, PyTorch, Scihit-learn, Keras, Chainer, MXNet, Matlab, and Spark MLlib, can be exported or converted to the standard ONNX format.
Azure Databricks provides hosted, optimized Apache Spark clusters running on Azure. Spark is a big data analytics service that includes its own machine learning libraries. Azure Databricks integrates with Azure Machine Learning, Azure Data Factory, Azure Data Lake Storage, and Azure Synapse Analytics.
Azure Cognitive Search
Azure Cognitive Search is a cloud search service with built-in AI capabilities that enrich all types of information, to identify and explore relevant content at scale. Formerly known as Azure Search, it uses the same integrated Microsoft natural language stack that Bing and Office have used for more than a decade, and AI services across vision, language, and speech. In other words, Microsoft Search uses Cognitive Search technology to offer software as a service for enterprise search within Microsoft products.
Azure Bot Service
Using bots is one way to automate or partially automate customer service and help desks. The Azure Bot Service and the Microsoft Bot Framework SDK help you to create bots and integrate them with Azure Cognitive Services. Once created, you can apply bots to channels including your website or apps, Microsoft Teams, Skype, Slack, Cortana, and Facebook Messenger.
Bots can be as sophisticated as you want to make them. You can start simple with informational bots, essentially front ends to your FAQ documents. Then you can add capabilities, for example by using the Azure Text Analytics and Language Understanding services to determine customer intent so that the bot can do customer escalations and help desk triage.
AI and machine learning on Azure
Overall, the Azure AI and Machine Learning platform—including the Azure Cognitive Services, Azure Machine Learning, the ONNX Runtime, Azure Databricks, Azure Cognitive Search, and Azure Bot Service—offers a wide range of cognitive services and a solid platform for machine learning that supports automatic machine learning, no-code/low-code machine learning, and Python-based notebooks. All of the services are very solid, and almost all services have a free tier for development and test. The only bug I found was in an experimental RStudio notebook, and that appeared to be a simple library version mismatch. (Yes, I reported the bug.)
I was impressed by the ability of Azure custom cognitive services to do transfer learning with single-digit numbers of samples, for example Custom Vision and Form Recognizer. I was also impressed by the progress the Azure Responsible AI offerings have made, although I suspect that there’s more work to be done in that area.
How does Azure AI compare to Google Cloud AI and Amazon’s AI and machine learning offerings? The quality and scope are similar; you can’t really go wrong with any of them. While I haven’t yet absorbed all of the improvements that AWS announced at re:Invent in December 2020, I can say that one differentiator between Azure and Google cognitive services is that Azure allows you to run cognitive service containers on premises, while Google currently lacks on-prem options.
Note: In general, production services have a 99.9% SLA.
Anomaly detection: 20K free transactions/month (10 calls/second dev/test); $0.314/1K transactions/month (80 calls/second production).
Content Moderator: 5K free transactions/month (1 transaction/second dev/test); $1/1K transactions/month (10 transactions/second production) + volume discounts over 1M transactions/month.
Metrics Advisor: No charge during preview.
Personalizer: 50K free transactions/month (10 GB storage); $1/1K transactions/month + volume discounts over 1M transactions/month.
Immersive Reader: No charge during preview.
Language Understanding: 10K free transactions/month; (5 TPS dev/test); $1.50/1K transactions/month text, $5.50/1K transactions/month speech (50 TPS production).
QnA Maker: 3 managed documents free each month (dev/test); $10 for unlimited managed documents. QnA also requires an App Service (free to $0.285/hour) and a Cognitive Search service (free to $7.667/hour).
Text Analytics: 5K free transactions/month; standard $1/1K text records with volume discounts; tiers from $74.71/month for 25K transactions to $5K/month for 10M transactions.
Translator: 2M chars free/month; $10 per million chars of standard translation, $40 per million chars of custom translation; standard translation tiers from $2K/month for 250M chars to $45K/month for 10B chars, custom translation tiers from $2K/month for 62.5M chars to $45K/month for 2.5B chars.
Speech to Text: 5 audio hours free per month, 1 concurrent request; $1 per audio hour, 20 concurrent requests.
Text to Speech: 5 million characters free per month standard, 0.5 million characters free per month neural; $4 per 1M characters standard, $16 per 1M characters neural, $100 per 1M characters neural long audio.
Speech Translation: 5 audio hours free per month; $2.50 per audio hour.
Computer Vision: 5K transactions free per month (20/minute); $1 to $1.50 per 1K transactions (10 TPS) with volume discounts.
Custom Vision: 1 hour training, 5K training images, and 10K predictions free/month (2 TPS); $20/compute hour training, $2 per 1K transactions, $0.70 per 1K images storage (10 TPS).
Face: 30K free transactions/month (20 TPM); $1 per 1K transactions with volume discounts (10 TPS).
Form Recognizer: 500 pages free per month; $10 to $50 per 1K pages depending on form type.
Video Indexer: 10 hours of free indexing to website users and 40 hours of free indexing to API users; $0.15/minute for video analysis, $0.04/minute for audio analysis.
Azure Machine Learning: $0.016 to $26.688/hour depending on number of CPUs, GPUs, and FPGAs, and amount of RAM; storage costs additional. VM costs only; No extra charge for machine learning service.
Azure Databricks: Combination of VM and service costs. See pricing details.
Azure Cognitive Search: Free to $3.839/hour, plus $1/1K images with volume discounts for document image extraction.
Azure Bot Service: Standard channels free; Premium channels free for 10K messages/month, S1 $0.50/1K messages.
Microsoft Azure cloud. A number of Azure Cognitive Services are available as Docker containers to be deployed on-premises.
