  • Since the traffic generator is being run on the same machine as the web browser, server process, and Redis process, you’re likely seeing some resource fighting already — either on the loopback or in the system as a whole.
  • js is a “garbage collected” language. It’s possible that GC is occurring at some point during accepting or responding to these messages.
  • The script is relying on both setTimeout and setIntervalwhich often lack precision (a lesson that is hard learned if you’ve ever tried to coordinate animations on the front end).

Now, let’s change out the function used to control delay. You can do this by specifying the switch delayFn when starting the Node.js process. The valid functions are:

  • noDelay
  • linear
  • batch3

To launch the Node.js process with batch3, the command would look like this:

$ node socket-shape.node.js --connection ../connection.json --delayFn batch3

Now, let’s see how our graph changes in batch3 mode:

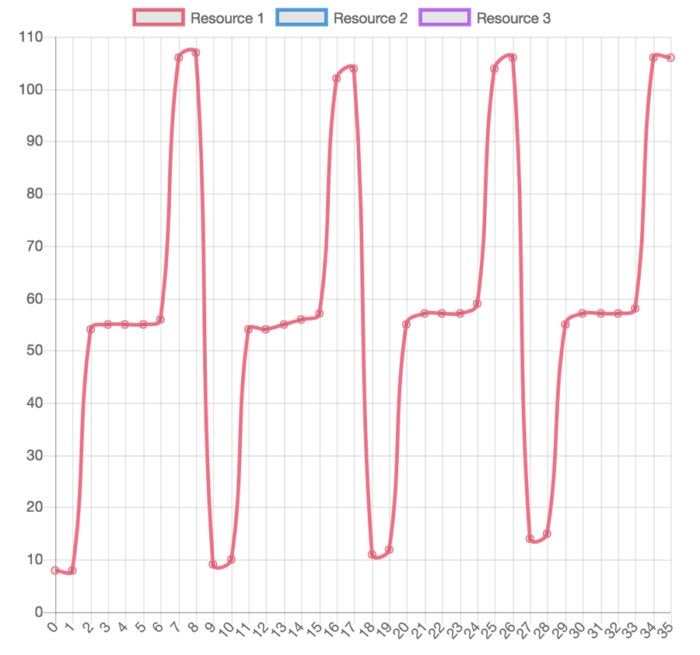

redis websocket traffic shaper 5 Redis Labs

Traffic -> 1 destination (batch3)

redis websocket traffic shaper 6 Redis Labs

Traffic -> All destinations (batch3)

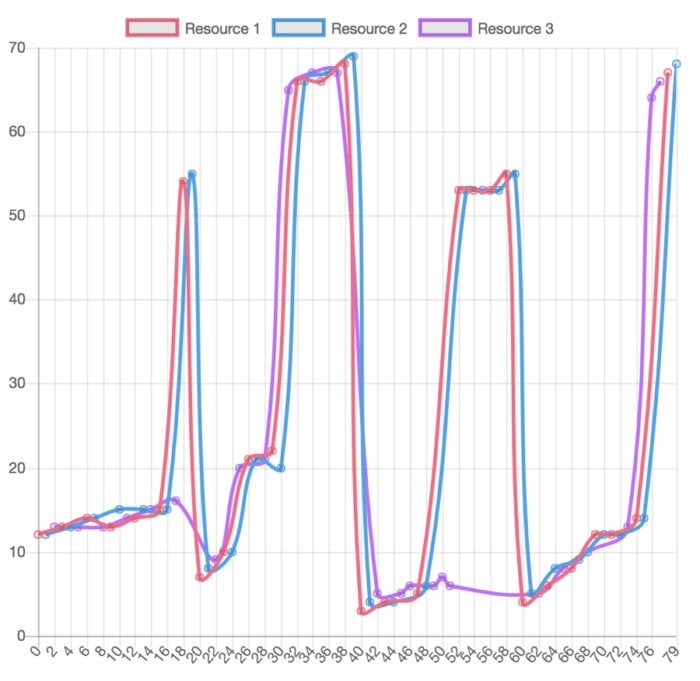

redis websocket traffic shaper 7 Redis Labs

Traffic -> Mixed destinations (batch3)

This last graph might seem a little unexpected, but it’s important to understand that the “Mixed destinations” pattern is pushing double the traffic to the server. Also keep in mind that the graph connects the dots regardless of whether or not there is data, so big stretches may not be reflected because of the delay.

Even though this is just a simple illustration, it is easy to see how using a simple distributed counter stored in Redis can give you a great deal of control over the flow of traffic to your application—especially when responding to full-duplex communication. Of course, when placing something directly in your data path to shape traffic, high availability and performance are critical. Redis Enterprise is always a good option for meeting those two requirements.
