How-to: REST Web services demystified

REST API integrations can be daunting if you haven't worked with Web services before. Here's how to get started

Page 2 of 5

The response from Google includes information that is useful to the client -- and that can be useful to you too. The first and most important piece is (4) the HTTP Status code. This code is returned with every response from an HTTP server. Understanding these codes makes it a lot easier to figure out what's happening between the client and the server.

  • 50x: Something went wrong with the server.
  • 40x: The developer did something unexpected.
  • 30x: These codes are used for redirects.
  • 20x: Cool, your request succeeded.

Watching HTTP traffic

With a basic understanding of how these transactions work, it's time to take it to the next level and watch some actual traffic. Fortunately, because HTTP is so widely used, it's easy to find traffic to inspect even before you start accessing the APIs. Many modern Web browsers provide a Web inspector function that allows you to see the browser's traffic. However, since the focus of this article is on software development using REST APIs, you'll need to use an application that lets you watch all of the HTTP traffic flowing to and from your system -- not just your browsing activity.

HTTP sniffers

HTTP sniffers are applications that provide a console to view the Web traffic on your system. All of them report on the transaction information detailed above: the URL, headers, method, and body of the request; and the status, headers, and body of the response. On the Macintosh, HTTP Scoop works quite well. On Windows, I suggest Fiddler, and for Linux/Unix systems there's Wireshark.

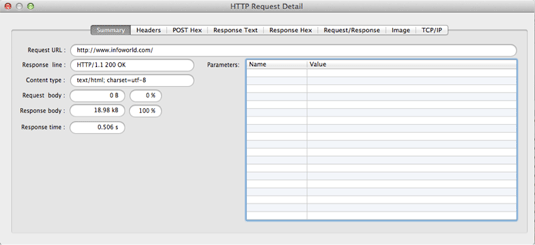

As an example, here are a few screenshots from HTTP Scoop. The first one shows the summary view with basic information about the request.

HTTP Scoop Scoop
( Click to enlarge .)

Double-clicking on one of the log lines gives a more detailed view of that particular transaction.

HTTP Scoop Details
( Click to enlarge .)

In the case of HTTP Scoop, you're provided with different tabs to explore specific aspects of the transaction. The Headers tab is frequently useful in understanding the request and response.

HTTP Scoop Headers
( Click to enlarge .)

Being able to inspect the headers for the transaction gives you a lot more information about how the client and server are communicating. Another particularly useful tab in this tool is Request/Response, which shows the GET parameters and POST body as well as the body of the server response.

You can almost always figure out what's going wrong with a request using a combination of the Headers and Request/Response tabs (or the equivalent in one of the other sniffers). If you can create a successful request, and compare the values to your failing request, it's generally fairly easy to figure out what you need to change in order to fix the issue.

Install one of these sniffers on your system and experiment with it a bit. Visit a Web page and make sure you can find all of the important components of the requests and responses listed above.
